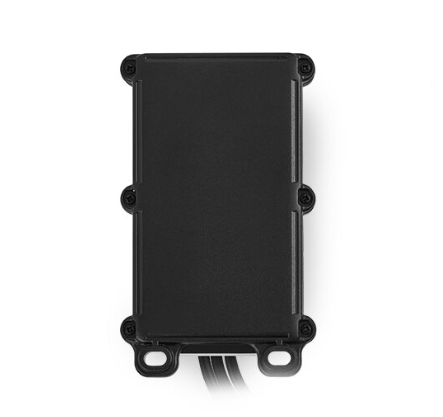

Smart Electric Vehicle Product WD-300
(1)Smart e-bike IoT function:
TBIT independent research and development of many smart e-bike IoT , device integrated real-time positioning, keyless start, induction and unlock, One click to find the e-bike, power detection, mileage forecast, temperature detection, vibration alarm, wheel alarm, displacement alarm, remote control, speeding warning, voice broadcast, and other functions into an organic whole, realize the real intelligent cycling experience and vehicle safety management.
(2)Application scenarios
Front installation: electric bike manufacturers front installation, the intelligent terminal products and the vehicle controller integration, together with the new e-bike factory.
Rear installation: secretly install terminal products to the existing stock of electric bikes to realize the function of smart electric bikes.
(3)Quality
We have our own factory in China, where we strictly monitor and test the product quality during production to ensure the best quality possible. Our commitment to excellence extends from the selection of raw materials to the final assembly of the device. We use only the finest components and adhere to strict quality control procedures to guarantee the stability and durability of our smart e-bike IoT.
Our smart e-bike IoT not only provides intelligent transformation solutions for electric bike manufacturers, but also brings users a more intelligent, convenient and safe driving experience. Choose our smart e-bike IoT, so that your electric bike efficient and fast to achieve low-cost intelligent upgrade, attract more users, and bring more revenue for your electric bike sales business.
Self-designed and developed smart electric vehicle product and IoT intelligent control module of electric scooter and E-bikes.With it, users can realize intelligent functions such as control through mobile phone and non-inductive start, helping you to monitor, remotely control and manage the fleet in real time.
Acceptance: Retail,Wholesale,Regional Agency
Product quality：We have our own factory in China. In order to ensure the stability of product performance, our company strictly monitors and tests the product quality in production to ensure the good quality of products.We will be your most trusted Smart Electric Vehicle Product provider!
About smart electric bike IOT device,any inquiries we are happy to reply, pls send your questions and orders.
Functions of Smart Electric Vehicle IOT :
Lock/unlock by proximity sensor
Start the e-bike by button
Cockpit lock
Cushion sensor
Smart voice broadcast
Anti-theft
Specifications:
| Size | (91.67±0.5)mm × (73.8±0.5)mm × (25.5±0.5)mm |
|---|---|
| Range of input voltage | 12V-90V（DC） |
| Built-in battery | Rechargeable lithium battery: 3.7V，1000mAh |
| Waterproof and dust-proof | ≥IP65 |
| Material of shell | ABS+PC,V0 level fire-proof |
| Working temperature | -20 ℃ ～ +70 ℃ |
| Working humidity | 20 ～ 95% |
| SIM card | Micro-SIM card |
Internet performance
| Supported modes | LTE-FDD/LTE-TDD |
|---|---|
| Maximum transmitting power | LTE-FDD/LTE-TDD：23dBm |
| Frequency band | LTE-FDD:B1/B3/B5/B8 |
| LTE-TDD:B34/B38/B39/B40/B41 |
GPS performance
| Positioning | GPS: L1&L5 BEIDOU: B1I,B1C,B2a |
|---|---|
| Sensitivity of tracking | < -162dBm |
| Start time | Cold start: 35 secondsHot start:2 seconds |
| Accuracy of positioning | 10 meters |
| Accuracy of speed | 0.3 meters/second |
| AGPS | Supported |
| Positioning conditions | The number of searched satellites is ≧ 4, and the signal-to-noise ratio is greater than 30dB |
| Base station positioning | Supported, positioning accuracy of 200 meters (related to base station density) |
Bluetooth performance
| Bluetooth version | BLE5.0 |
|---|---|
| Receiving sensitivity | -90dBm |
| Maximum receiving distance | 30 meters,in open area |
| Receiving distance inside the e-bike | 10-20 meters,depending on the installation environment |
Functional Description :
Functional Description :
| Functions | Descriptions |
|---|---|
| Positioning | WD-300 can be positioned in real time, and the current positioning information of the device can be obtained by issuing commands remotely from the platform. When there is a GPS signal, the GPS position location is reported. When there is no GPS signal, the location information of LBS will be reported. The location information will be uploaded to the platform and APP, and the device supports GPS+BEIDOU positioning. |
| Alarm | In alarm mode, WD-300 detects the signal of vibration/wheel rotation and ACC. If it detects a vibration signal, the vibration alarm will be generated. And when the wheel rotation signal is detected, a wheel rotation alarm will be generated. |
| Disarm | In disarm mode, WD-300 won’t detect the signal of vibration, but still detect the signal of wheel rotation and ACC . |
| 433M remote controller | It can matched with 433M remote controller,and works with two remote controllers. |
| 485 or CANBUS | Communicate with the controller through the 485 or CANBUS, to obtain the related information of the controller, BMS and other accessories. |
| =Uploading data in real-time= | The device and the platform are connected through the network,the data is transmitted in real time. |
| =OTA= | Supported |
| Vibration detection | WD-300 has G-sensor that can detect the signal of vibration . When the e-scooter is in alarm mode, the vibration alarm will be generated if the e-scooter has vibration. |
| Wheel rotation detection | When the e-scooter is in alarm mode, the wheel rotation alarm will be generated if the wheel of the e-scooter has rotated. |
| ACC detection | The power-up status of the e-scooter is detected in real time. |
| Voice broadcast | It can play the voice broadcast when connected with the voice speaker. |
| Battery lock | Support 5V battery lock |
| Helmet lock | Support 4pin helmet lock |
| Induction | The user can unlock the e-bike by the mobile phone when close to the e-bike,and lock the e-bike when far away the e-bike. |
| Start the e-bike by one button | It can start the e-bike by one button. |
| Long standby sleep mode | Supports cyclic power-on modes of 24h, 8h, 1h, and 10min. With one location update per day, standby time is up to 70 days. |
