UP-002
Printer Configuration:
|
Inkjet Printer |
Laser Printer |
|
|
|
|
Canon GX5580 |
Pantum BP5100DN (Three-Tray) |

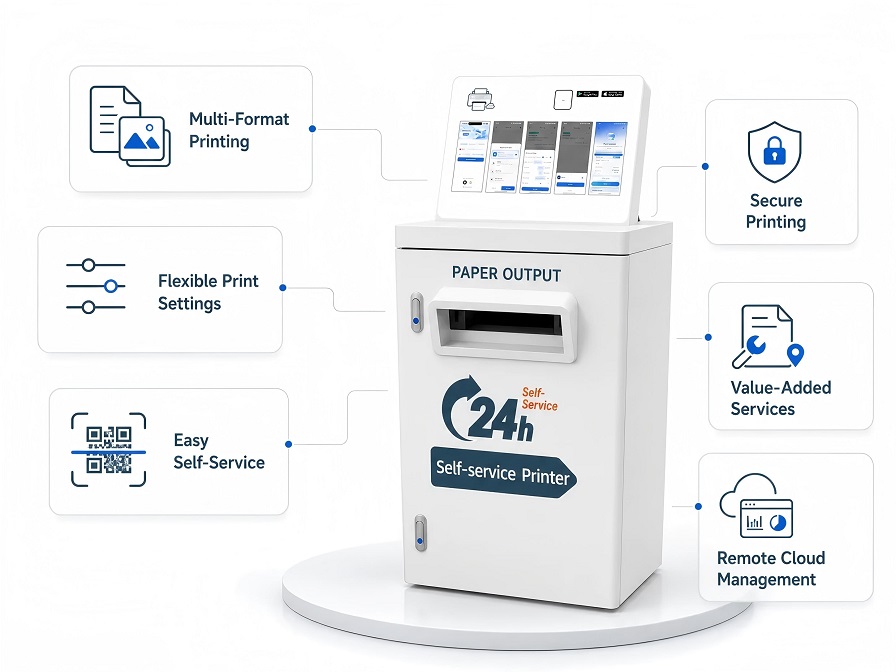

Features:
1. Supports Printing of Multiple File Types, Including Documents and Images:
Supports PPT, PPTX, PDF, DOC, DOCX, PNG, JPG, and JPEG files. The maximum file size is 50 MB, with up to 9 files allowed per upload. Documents can be shared from WeChat or WhatsApp, or uploaded directly from a mobile device for printing.
2. Fully Customizable Print Settings:
The app allows users to freely configure the number of copies, single- or double-sided printing, portrait or landscape orientation, page range, black-and-white or color mode, and standard A4 paper.
3. Self-Service Operation, Easy to Use:
Users simply open the app, scan the QR code on the printer, add documents, and complete the print settings to start printing. The intuitive process is smart, convenient, and hassle-free.
4. Bank-Grade Secure Printing:
Files are encrypted during transmission, and document caches are automatically deleted from the cloud after printing is completed, helping prevent user privacy breaches and complying with global data compliance standards.
5. Convenient Value-Added Services:
The app supports online purchase of blank printing paper, one-tap reporting of equipment faults, and searching for all nearby self-service printing stations.
6. Remote Cloud-Based Management:
Through the merchant PC web portal and mobile app, operators can monitor order transactions, daily revenue, and device online status in real time. Alerts for issues such as paper jams and paper shortages are automatically pushed to the operator.
|
Canon GX5580 Printer Specifications |
| Printing Functions:Printing Method：On-demand inkjetMaximum Print Resolution：600×1200dpi(horizontal × vertical)
Control Panel：2.7-inch color touchscreen |
| Other Printing Functions：
Automatic duplex printing: supported (A4/Letter, 64 g/m² plain paper) Printer Language：Host-based printing Print-head alignment: automatic/manual |
| Paper Handling
Paper Feed Method: Friction feed Paper Input Capacity:Standard Tray 1: 250 sheets, plain paper Standard Tray 2: 250 sheets, plain paper Standard Rear Paper Tray: 100 sheets, plain paper (approx. 150 sheets of thin paper) Total Paper Input Capacity: Up to 600 sheets Supported Paper Sizes: Rear Paper Tray: A4, A5, A6, B5, B6, B6H, LTR, LGL, Executive, envelopes (#10/DL/C5/Monarch), 4" × 6", 5" × 7", 7" × 10", 8" × 10", square paper (127 × 127 mm), and custom sizes (64–216 mm W × 127–1,200 mm L) Tray 1: A4, LTR, A5, B5, Executive, and custom sizes (148–216 mm W × 210–297 mm L) Tray 2: A4, LTR, LGL, and custom sizes (210–216 mm W × 279.4–355.6 mm L) Supported Paper Types: Plain paper, thick paper (up to 250 g/m²), photo paper, label paper, magnetic sheets, and other media |
| Printer SpecificationsExternal Dimensions: Approx. 399 mm (W) × 410 mm (D) × 298 mm (H) (with trays retracted)Weight: Approx. 10.4 kg (with print head installed)
Power Supply: AC 100–240 V, 50/60 Hz |
| Printer Enclosure Specifications (UP-002A)External Dimensions: Approx. 527 mm (W) × 630 mm (D, with output slot protruding) × 1,273.5 mm (H)
Weight: Approx. 46.5 kg |
| Pantum BP5100DN Printer Specifications |
| Printing Functions:
Printing Method：Monochrome laser printing (separate toner cartridge and drum design) Print Resolution：up to 1200 × 1200 dpi |
| Other Printing Functions：Automatic duplex printing: supported (automatic) |
| Paper Handling：Paper Feed Method: Friction feed
Paper Input Capacity: Standard Automatic Paper Tray: 250 sheets (80 g/m²) Multipurpose Paper Tray: 60 sheets (80 g/m²) Optional Paper Tray: 550 sheets × 2 (optional tray model PT-511H; up to 2 trays can be installed) Maximum Total Paper Input Capacity: 1,410 sheets Supported Paper Sizes: Automatic Paper Tray / Optional Paper Tray: A4, A5, A5L, A6, JIS B5, ISO B5, B6, Letter, Legal, Folio, Oficio, Statement, Executive, 16K, Big 16K, 32K, Big 32K, and custom sizes Multipurpose Paper Tray: The above sizes, plus envelopes (Monarch/DL/C5/C6/No. 10), postcards (Japanese Postcard/Postcard/ZL), Yougata 2/3/4, Nagagata 3, and custom sizes Supported Paper Types: Plain paper (including recycled paper), thin paper, thick paper, transparencies, cardstock, labels, envelopes, and extra-thick paper |
| Printer Specifications：Product dimensions: 362 mm (L) × 340 mm (W) × 257 mm (H)Product weight: approx. 7.8 kg (approx. 9.3 kg including consumables)Power Voltage：110 V model: AC 110–127 V, 50/60 Hz, 14 A; 220 V model: AC 220–240 V,50/60 Hz, 7 A |
| Printer Enclosure Specifications (UP-002B)External dimensions: approx. 527 mm (W) × 550 mm (D, output slot not protruding) × 1273.5 mm (H)Weight：Approx.46.5kg |

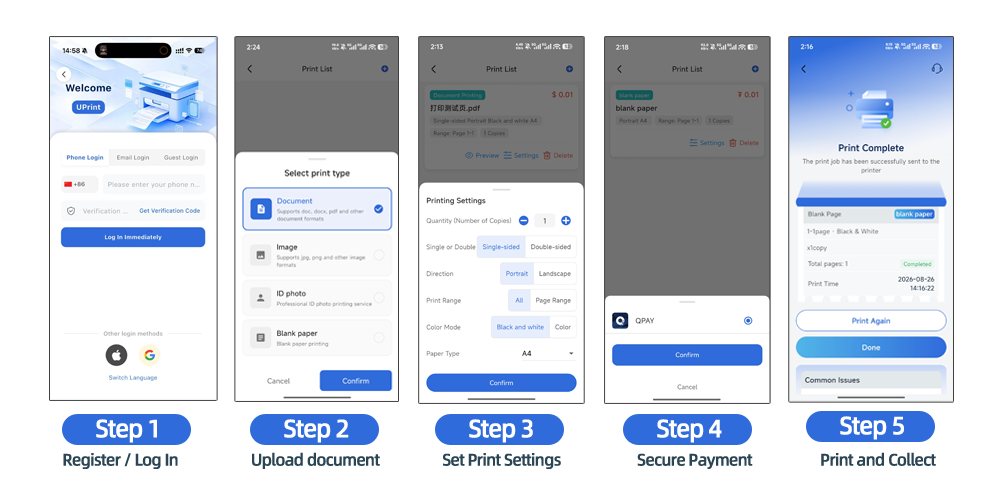

Printing Process:
Product Advantages:
Operating Costs: Save 100% on labor costs and 80% on rental costs.
Service Efficiency: 24-hour service with simple, user-friendly operation.
Business Hours: 24/7 unattended operation.
User Experience: QR-code self-service operation with automatic deletion of encrypted files.
Profitability: Profit margin of over 50%, with a payback period of 6–7 months at high-quality locations.
Management: One person can manage multiple devices, making large-scale expansion easy to achieve.
