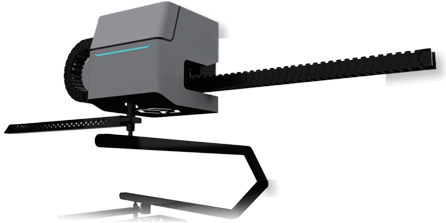

CW-102

Short Description:

The CW-002 Semi-Automatic Car Wash Machine is specially designed for small and medium-sized automotive detailing and car care stores. It automatically handles water-intensive and repetitive rinsing processes, while manual detailed wiping ensures both washing efficiency and cleaning quality.

The machine features a proprietary ducted-fan drying system that effectively addresses common industry challenges, such as difficulty drying water accumulated on the roof and roof racks, as well as the labor-intensive nature of two-person operations. It enables a single operator to complete the entire vehicle cleaning process independently.

With its compact design, quick installation, and lower upfront investment, the CW-002 is an ideal solution for small car care stores looking to improve service quality and operational efficiency.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Product Manual

Product Detail

Functions & Configuration
No-Wipe Car Wash Detergent Spraying System	1 set	Intelligent Equipment Data	management, inspection, and operation
Water Wax Spraying System	1 set	Fault Self-Diagnosis	Available

Per-Wash Consumption
Water per vehicle	80L/vehicle	Foam per vehicle	50ml/vehicle
Electricity per vehicle	0.3kwh/vehicle	Water wax per vehicle	15ml/vehicle

Product Specifications
Operating Area	L 6.5 m × W 3 m	Installation Area	L 6.5 m × W 3.5 m × H 3.1 m, with necessary inspection access on both sides
Ground Flatness	deviation ≤10 mm	Power Supply Requirements	VoltageAC380V50Hz6kw
Compatible Vehicle Types	Sedans, SUVs, and MPVs	Air Supply Requirements	0.6–0.8 MPa Flow rate ≥0.1 m³/min
Vehicle Wash Dimensions	L 5.3 m × W 2 m × H 2 m	Water Supply Requirements	Pipe diameter: DN25Flow rate ≥100 L/min
Equipment Dimensions	L 5 m × W 1.6 m × H 1.3 m

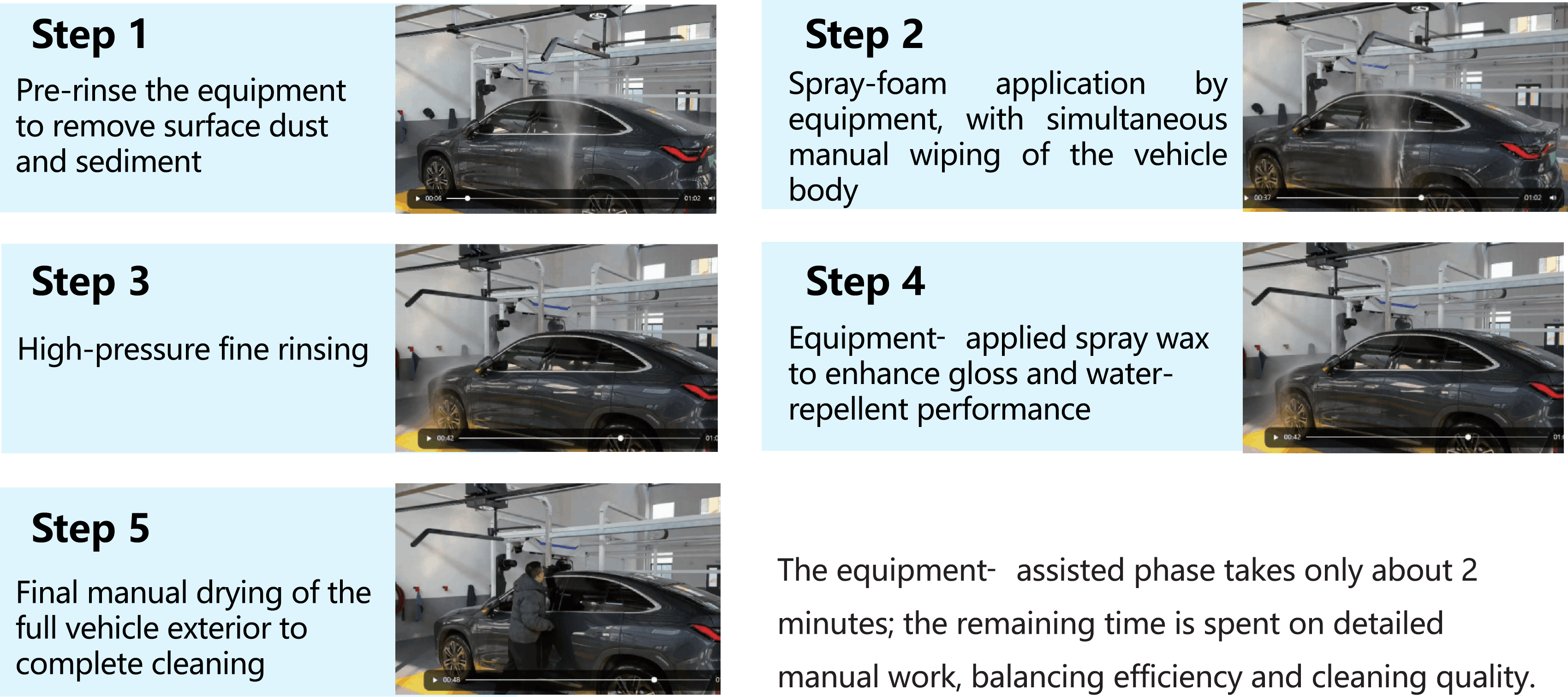

Standardized 6-Step Automatic Car Wash Process

1. Automatic pre-rinsing: high-pressure water removes surface dust and large pieces of mud and sand.

2. Foam spraying + simultaneous manual wiping: softens and dissolves stubborn stains while staff wipe the vehicle body, saving labor time.

3. Precise secondary rinsing: thoroughly removes foam and residual dirt.

4. Automatic water-wax application: forms a glossy protective layer on the paint.

5. Ducted-fan high-position drying: directed high-volume airflow quickly removes water from the roof and roof rack.

6. Detailed manual wiping: removes residual water from door gaps, side mirrors, and the lower body.

Eight Core Competitive Advantages

1. Compact design for rapid deployment

The integrated compact design supports three installation methods: ceiling suspension, wall mounting, and a customized frame. No major modification of the existing store site is required; installation and commissioning can be completed within 3 hours without affecting normal business.

2. Excellent water-saving performance and controllable operating costs

Uses only 80 L of water per vehicle, compared with 150–200 L for traditional manual washing, saving 40%–60% and significantly reducing water costs over the long term, in line with global green and low-carbon operating standards.

3. Efficient 9-minute full-vehicle wash to increase throughput

The machine automatically completes pre-rinsing, foaming, precision rinsing, and water-wax application, combined with simultaneous manual work. Full exterior cleaning takes only 9 minutes, greatly increasing the number of vehicles served during peak periods.

4. IoT-enabled remote operation and maintenance to reduce after-sales costs

The built-in IoT communication module enables real-time remote monitoring of equipment status, early fault alerts, remote diagnostics, and online system upgrades, reducing on-site engineer visits and downtime losses.

5. Triple-redundant safety protection to prevent paint scratches

① German high-precision ultrasonic sensors identify the vehicle contour in real time for obstacle avoidance；② Intelligent error-correction system automatically blocks abnormal commands；③ Overload protection stops the machine within 0.1 seconds, providing comprehensive protection for the vehicle paint.

6. Powerful ducted-air drying system to reduce manual workload

Directed high-volume airflow quickly removes water from the roof and raised roof racks, eliminating the need for employees to climb, wipe, and repeatedly handle towels, significantly reducing physical workload.

7. Complete operation by one person, ideal for flexible staffing at small stores

The entire process from rinsing to drying can be completed independently by one employee, making it ideal for small and medium-sized automotive detailing stores with dispersed customer traffic and shift-based staffing.

8. Strong compatibility with different sites; suitable for both new and existing stores

Its small footprint and low site-modification requirements make it suitable for both new and existing stores and adaptable to various small automotive detailing layouts.
