CW-001

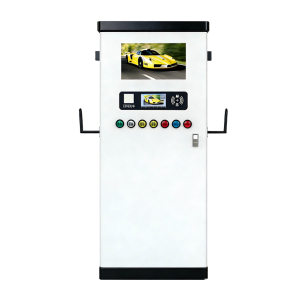

CW-001 Integrated Unmanned Self‑Service Car Wash Machine is designed specifically for gas stations, community parking lots, commercial areas, and roadside service stations. It integrates comprehensive vehicle cleaning functions with a fully intelligent payment and management system, supporting 24/7 unattended operation. With a low investment threshold and simple operation and maintenance, it is a lightweight commercial solution that enables small and medium‑sized entrepreneurs and site operators to generate stable additional revenue.
Functions & Configuration:
| Standard Functions | |||
| 01 | High-Pressure Rinse | 03 | Vacuum Cleaning |
| 02 | Foam | 04 | Hand Washing |
| Optional Functions | |||
| 01 | Ozone Disinfection |
03 | Coating |
| 02 | Air Dry | 04 | Windshield Washer Fluid Refill |
| Featured Optional Functions | |||
| 01 | Constant-Temperature System | 02 | Drainage System |
| Complete Equipment List | ||||
|
Water Gun x1 |
Foam Gun x1 |
10m Vacuum Hose x1 |
8m High Pressure Water Hose x2 |
Water Faucet x1 |
 |
 |
 |
 |
 |
|
Product Specifications |
|||
|
Voltage |
220V/380V(optional) | Power | 2500W/3000W(optional) |
|
Motor |
4‑pole All‑Copper Winding, GB Standard | Pump Head | all-ceramic plunger |
|
Water Flow Rate |
13L/min-14L/min | Water Tank | 30L/40L |
|
Display |
7-inch LCD/Full‑Color LCD | Foam Tank | 40L-80L |
|
Advertising Space |
backlit lightbox panel/digital advertising display(optional) | Vacuum | Guangzhou Baiyun Jieba |
|
Control Buttons |
Plastic/Stainless Steel | Vibration Damping & Noise Reduction | standard configuration (reduced equipment noise) |
|
Use Methods |
QR code / card | System Backend | unlimited permissions with independent management and operation |
|
Mobility |
swivel casters | Fixing Method | 304 SS Leveling Foot |

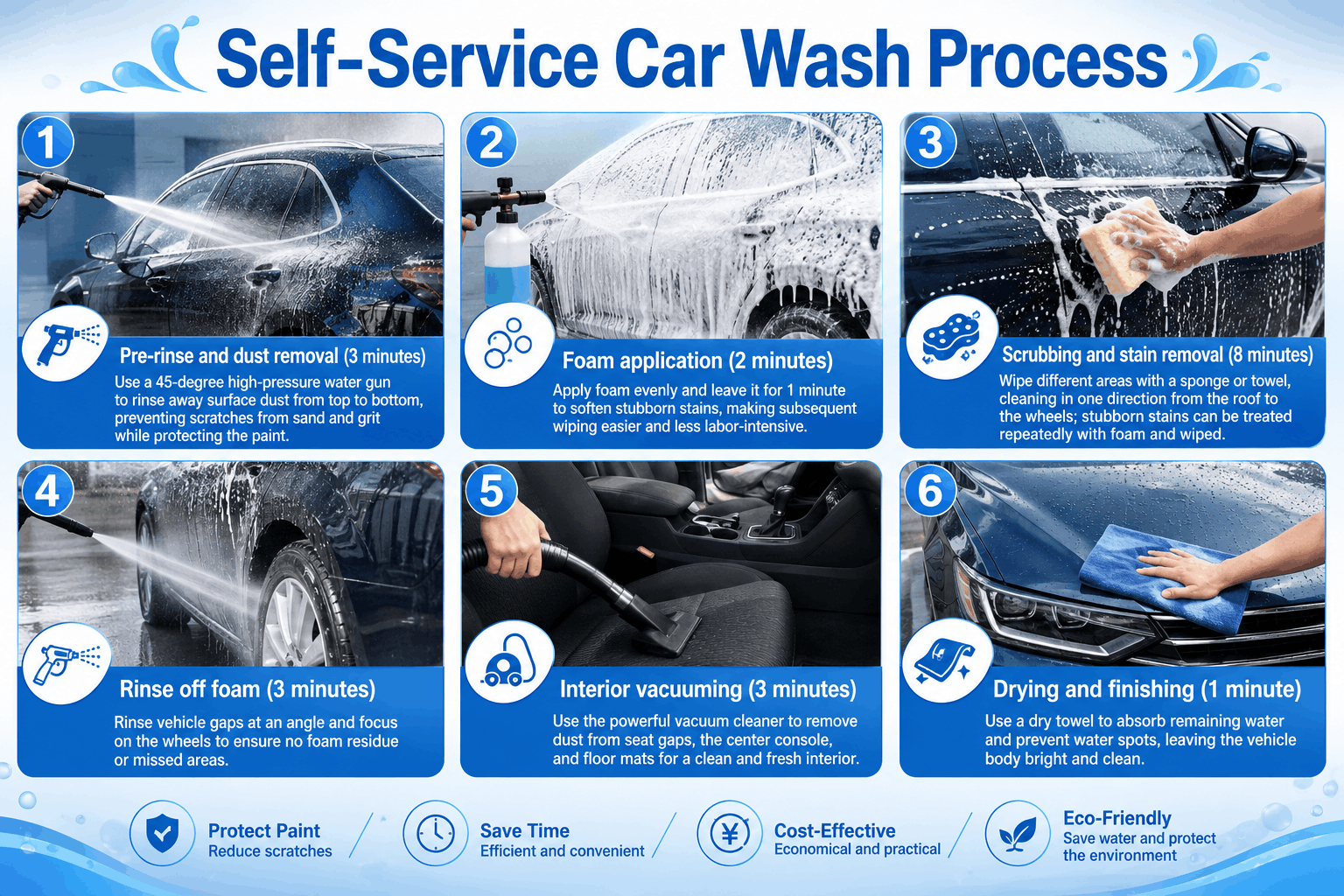

Self-Service Car Wash Process
1. Pre-rinse and dust removal (3 minutes)
Use a 45-degree high-pressure water gun to rinse away surface dust from top to bottom, preventing scratches from sand and grit while protecting the paint.
2. Foam application (2 minutes)
Apply foam evenly and leave it for 1 minute to soften stubborn stains, making subsequent wiping easier and less labor-intensive.
3. Scrubbing and stain removal (8 minutes)
Wipe different areas with a sponge or towel, cleaning in one direction from the roof to the wheels; stubborn stains can be treated repeatedly with foam and wiped.
4. Rinse off foam (3 minutes)
Rinse vehicle gaps at an angle and focus on the wheels to ensure no foam residue or missed areas.
5. Interior vacuuming (3 minutes)
Use the powerful vacuum cleaner to remove dust from seat gaps, the center console, and floor mats for a clean and fresh interior.
6. Drying and finishing (1 minute)
Use a dry towel to absorb remaining water and prevent water spots, leaving the vehicle body bright and clean.
Key Product Advantages
1、One-stop car washing for diverse scenarios
Integrates high-pressure rinsing, foam cleaning, interior vacuuming, and hand-washing facilities to cover everyday car-washing needs and clean both the exterior and interior with one machine.
2、Water-saving and low-carbon, significantly reducing operating costs
Water consumption is below 50 L per vehicle, saving more than 50% compared with traditional manual car washing and significantly reducing water costs over long-term operation, in line with global low-carbon and environmentally friendly business trends.
3、Fully intelligent unmanned operation with zero on-site staffing
Customers can scan a QR code to start the wash with one tap, and payment is automatically deducted in real time when the gun is returned. The interface is simple and intuitive, enabling uninterrupted 24/7 operation without on-site staff.
4、Industrial-grade durable hardware with an extremely low failure rate
Equipped with an all-copper national-standard motor and all-ceramic plunger pump, the machine delivers stable operation and high resistance to wear, is suitable for high-frequency commercial use year-round, and offers a longer service life with lower maintenance costs.
